Ford FG XR6T Stage3

Tuned · 02 Apr 22
Bay 02 · Mainline AWD

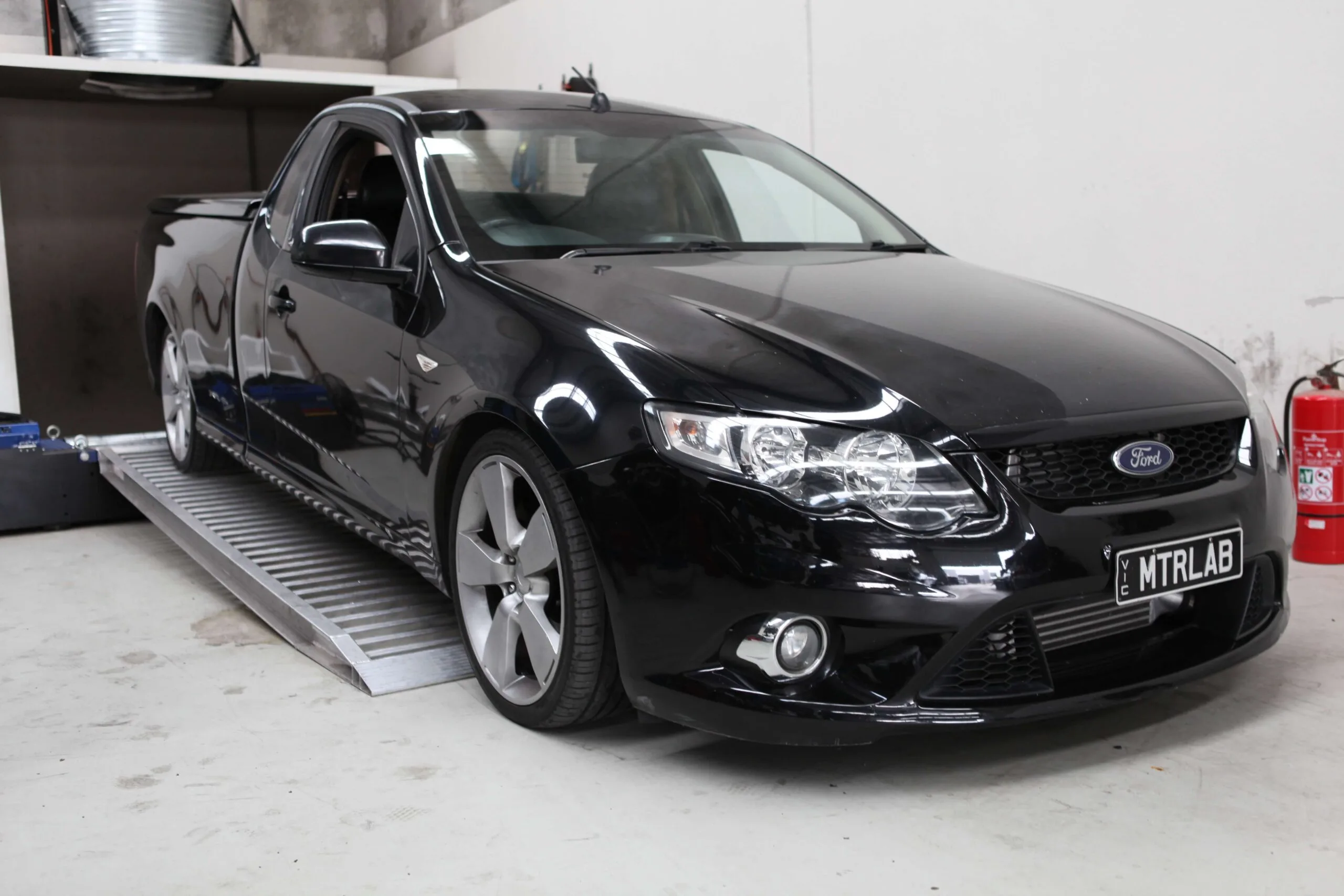

[ On the dyno ] Ford FG XR6T Stage3 — On the dyno

[ Engine bay ]

BARRA

[ Dyno screen ] Ford FG XR6T Stage3 — Dyno screen

— Vehicle details

Spec sheet.

SeriesFG

Yearaxy9xrg0ri40eq9w2z5wq2a0

EngineBARRA

FuelE85

ECUFactory

Drivetrain2WD

— Notes from the tuner

What we did.

XR6T fitted with ARP headstuds, Garret 3582 turbocharger and 2200cc fuel injectors + walbro 460L. The intercooler is a stage 1 Plazmaman along with Kelford valve springs a simple 400kw recipe on e85.

Anton Krstic · Lead tuner · Bay 02

— Stage 3 tune

Power & torque · stock vs tuned.

Hubs · SAE J1349 · Median of 3 pulls

— Power

Stock

226kW

→

Tuned

404kW

+178 kW (239 hp) at the hubs+79%

— Torque

Stock

508Nm

→

Tuned

771Nm

+263 Nm (194 lb·ft) at the hubs+52%

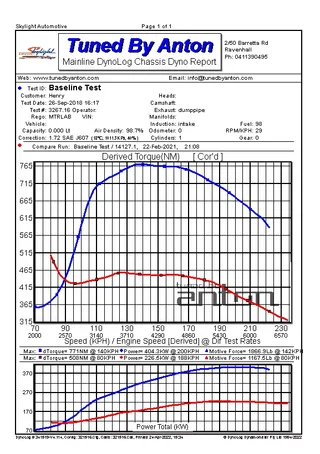

⌁Dyno graph · Pull recorded on the Mainline AWD

Download ↓

— Hardware

Modifications.

6 categories · Stage 3 build

·Intake
·Exhaust
·Down Pipe
·Intercooler
·Fuel System Upgrade
·Turbocharger

— Calibration

ECU improvements.

Factory

·Improved Power
·Improved Torque
·Increased Clutch Line Pressure
·Optimized Shift Schedule
·Optimized Shifts
·Increased Clutch Torque Limits
·Improved Converter Lock Up
·Imrpoved Gearshift Torque Reduction
·Improved Thermal Dynamics
·Linearised Accelerator
