Stage 3Haltech

Ford FG XR6T Stage 3

Tuned · 11 Mar 23
Bay 02 · Mainline AWD

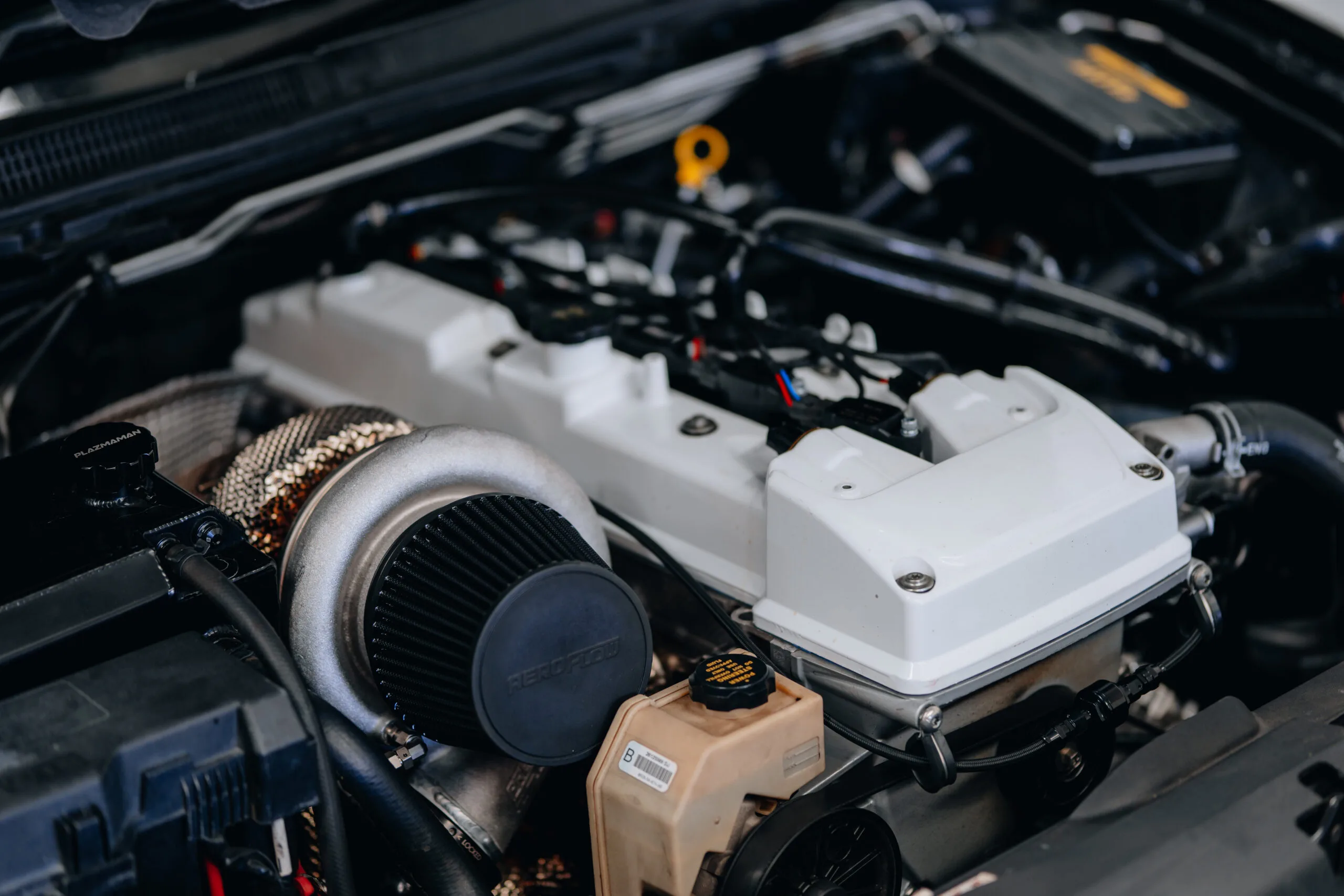

[ On the dyno ]Ford FG XR6T Stage 3: On the dyno

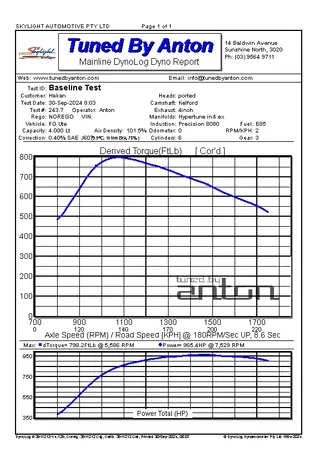

[ Dyno screen ]Ford FG XR6T Stage 3: Dyno screen
Vehicle details

Spec sheet.

MakeFord
ModelFalcon
SeriesFG
EngineBARRA
FuelE85
ECUHaltech
Drivetrain2WD
Notes from the tuner

What we did.

Hakan's FG Ute now producing 719kw

Kelford &  Supertech head gearExtensive headportingPrecision 8080 turbochargerHypertune in & ex manifold,Johnny Tig intercoolerPRP GTR coil kitTH400 transmissionHaltech plugin ECU

#barra #kelford #haltech #precisionturbo #geelongmotorsportfabrication #bjengineworx #tunedbyanton

Anton Krstic · Lead tuner · Bay 02

This Ford Falcon FG was tuned on our Mainline AWD dyno. All results here come from dyno tuning in Melbourne at our Epping workshop.

More on this platform

Other Ford Falcon FG results.

Ford FG Falcon Stage 1Stage 1270 kW

Ford FG Falcon Stage 1

View result →
Ford EA Falcon TurboStage 1189 kW

Ford EA Falcon Turbo

View result →
Ford FG Falcon Phase 2 TuneStage 2295 kW

Ford FG Falcon Phase 2 Tune

View result →
Stage 3 tune

Power & torque · stock vs tuned.

Hubs · SAE J1349 · Median of 3 pulls
Power
Stock
226kW
→
Tuned
719kW
+493 kW (661 hp) at the hubs+218%
Torque
Stock
508Nm
→
Tuned
1,081Nm
+573 Nm (423 lb·ft) at the hubs+113%
⌁Dyno graph · Pull recorded on the Mainline AWD
Download ↓
Hardware

Modifications.

10 categories · Stage 3 build
  • ·Intake
  • ·Exhaust
  • ·Down Pipe
  • ·Intercooler
  • ·Fuel System Upgrade
  • ·Ignition Upgrade
  • ·Engine Components
  • ·Transmission Components
  • ·Turbocharger
  • ·Headers
Calibration

ECU improvements.

Haltech
  • ·Improved Power
  • ·Improved Torque
