Stage 2Factory
Navara NP300 Stage 2
Tuned · 23 Nov 22
Bay 02 · Mainline AWD
Bay 02 · Mainline AWD

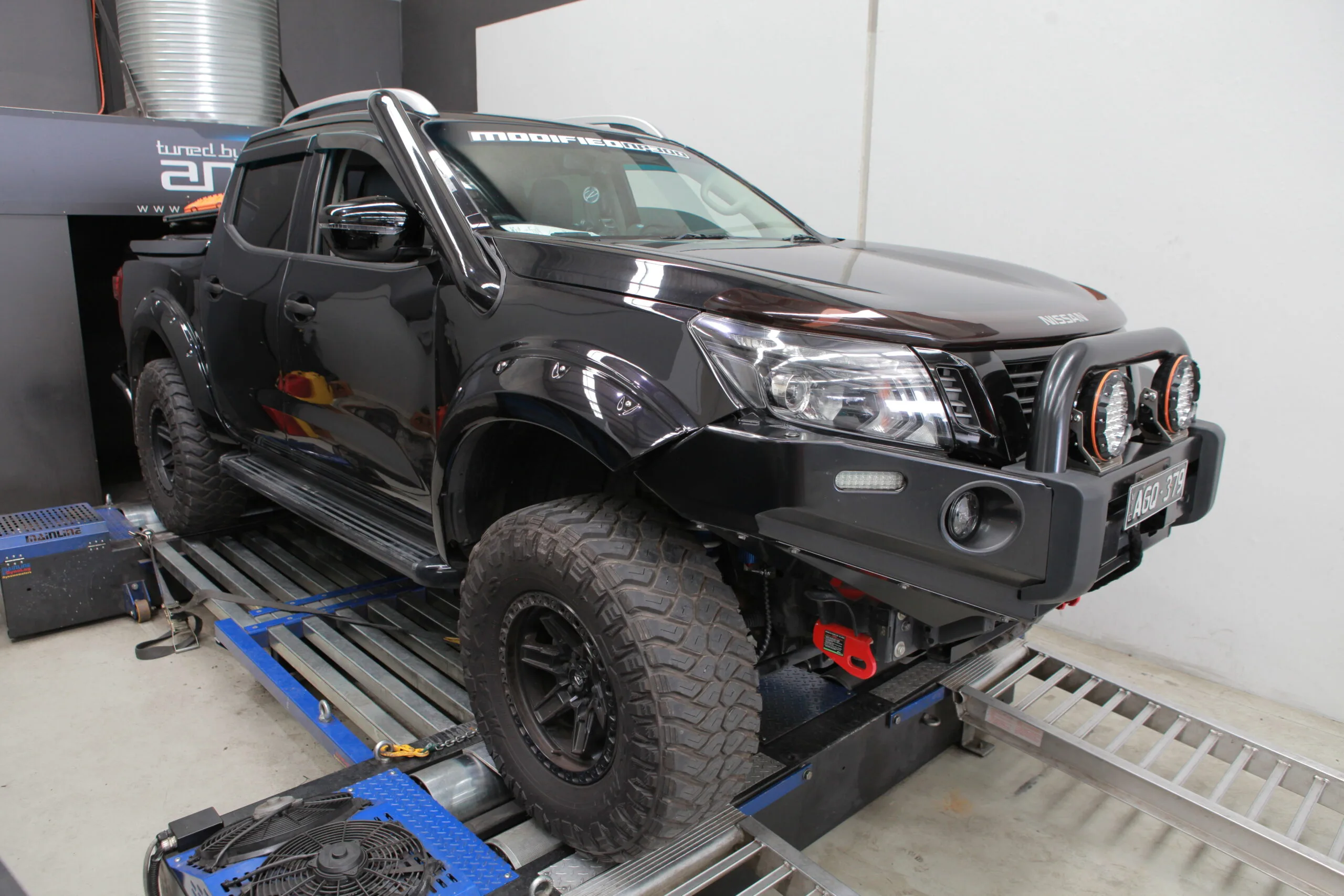

[ On the dyno ]
[ Engine bay ]
D23
[ Dyno screen ]
— Vehicle details
Spec sheet.
SeriesNP300
Yearh6jw0olptoxt8yvioqd5py14
EngineD23
FuelDiesel
ECUFactory
Drivetrain4WD
— Notes from the tuner
What we did.
NP300 on 33's producing +35%power +25%torque with basic modifications such as snorkel, full exhaust kit & cooler pipes. Boost is capped at 2bar due to the limitation of the factory intercooler. With intercooler upgrade it is not uncommon for to be optimal @ 2.5bar boost.
Book your NP300 now. www.tunedbyanton.com/book-your-tune/
#np300 #navara #dieseltuning #melbourne #tunedbyanton
Anton Krstic · Lead tuner · Bay 02
— Stage 2 tune
Power & torque · stock vs tuned.
— Power
Stock
86kW
→
Tuned
119kW
+33 kW (44 hp) at the hubs+38%
— Torque
Stock
338Nm
→
Tuned
424Nm
+86 Nm (63 lb·ft) at the hubs+25%

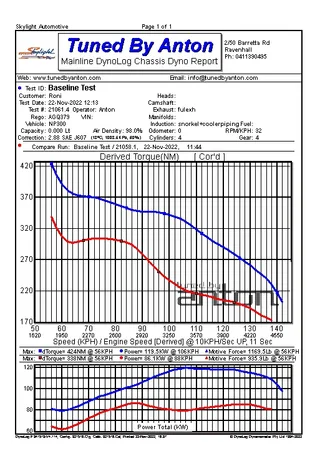

⌁Dyno graph · Pull recorded on the Mainline AWD
— Hardware
Modifications.
3 categories · Stage 2 build
- ·Intake
- ·Exhaust
- ·Down Pipe
— Calibration
ECU improvements.
Factory
- ·Increased Engine Response
- ·Improved Fuel Efficiency
- ·Improved Power
- ·Improved Torque
