Nissan Navara D22 Stage3
Tuned · 21 Oct 22
Bay 02 · Mainline AWD
Bay 02 · Mainline AWD

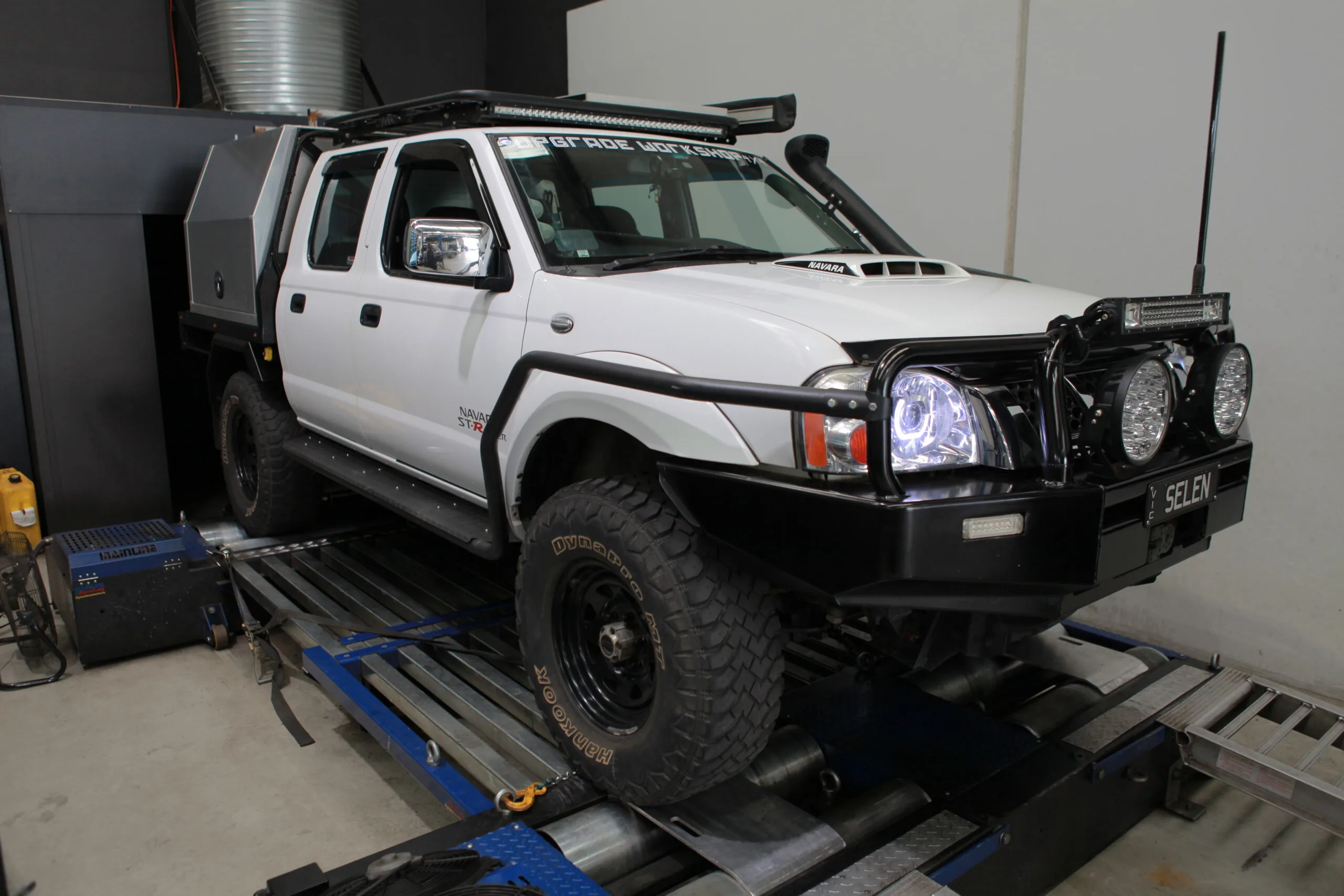

[ On the dyno ]
[ Engine bay ]
YD25
[ Dyno screen ]
— Vehicle details
Spec sheet.
SeriesD22
Yearvq9wvzpa5nkui52t9wptznmk
EngineYD25
Fuel98 RON · Diesel
ECUFactory
Drivetrain4WD
— Notes from the tuner
What we did.
D22 Navara on 33's with highflow turbo, tmic, airbox + snorkel. We found with conventional tuning the egt's would rapidly exceed 600c due to the load introduced by the heavy set of tyres. For this reason we changed up strategy to acheive and maintain sustainable gas temperatures, as a result we managed to improve the peak torque output by 45%.
#navara #d22 #dieseltuning #tunedbyanton
Anton Krstic · Lead tuner · Bay 02
— Stage 3 tune
Power & torque · stock vs tuned.
— Power
Stock
73kW
→
Tuned
106kW
+33 kW (44 hp) at the hubs+45%
— Torque
Stock
222Nm
→
Tuned
343Nm
+121 Nm (89 lb·ft) at the hubs+55%

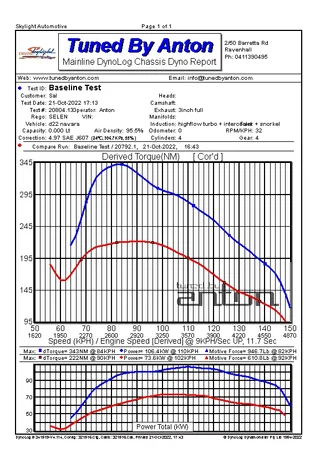

⌁Dyno graph · Pull recorded on the Mainline AWD
— Hardware
Modifications.
5 categories · Stage 3 build
- ·Intake
- ·Exhaust
- ·Down Pipe
- ·Intercooler
- ·Turbocharger
— Calibration
ECU improvements.
Factory
- ·Improved Fuel Efficiency
- ·Improved Power
- ·Improved Torque
