Nissan Navara NP300 Stage 1
Tuned · 03 Jan 23
Bay 02 · Mainline AWD
Bay 02 · Mainline AWD

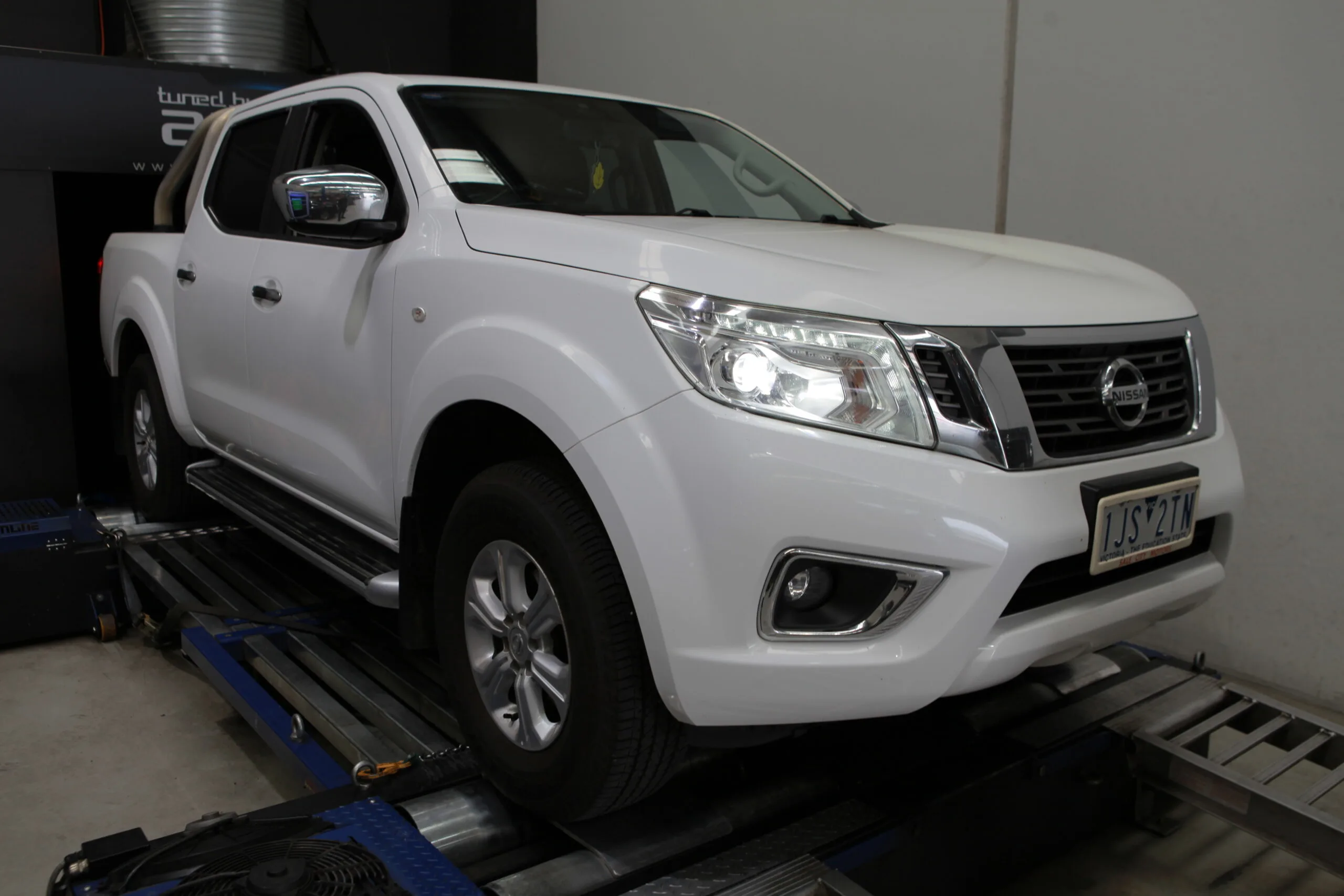

[ On the dyno ]
[ Engine bay ]
D23
[ Dyno screen ]
— Vehicle details
Spec sheet.
SeriesNP300
Yeargrotdr4ce867np0vgus0xobu
EngineD23
FuelDiesel
ECUFactory
Drivetrain4WD
— Notes from the tuner
What we did.
Navara NP300 now producing +16% torque improvement right through the rpm range. The diesel vehicles do improve fuel efficiency as well as performance. This particular vehicle is fitted with a full exhaust. I do recommend intercooler upgrade as it is the component which restricts performance with these vehicles.
#np300 #navara #dieseltuning #melbourne #tunedbyanton
Anton Krstic · Lead tuner · Bay 02
— Stage 1 tune
Power & torque · stock vs tuned.
— Power
Stock
118kW
→
Tuned
143kW
+25 kW (34 hp) at the hubs+21%
— Torque
Stock
389Nm
→
Tuned
452Nm
+63 Nm (46 lb·ft) at the hubs+16%

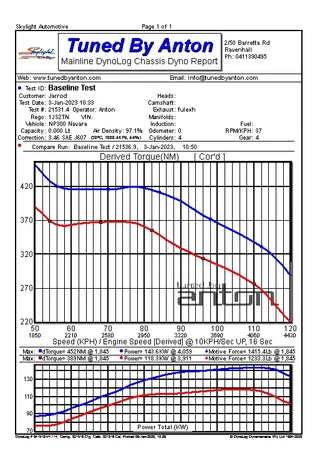

⌁Dyno graph · Pull recorded on the Mainline AWD
— Hardware
Modifications.
2 categories · Stage 1 build
- ·Exhaust
- ·Down Pipe
— Calibration
ECU improvements.
Factory
- ·Improved Fuel Efficiency
- ·Improved Power
- ·Improved Torque
