Nissan Navara NP300 Stage 2
Tuned · 11 Mar 23
Bay 02 · Mainline AWD
Bay 02 · Mainline AWD

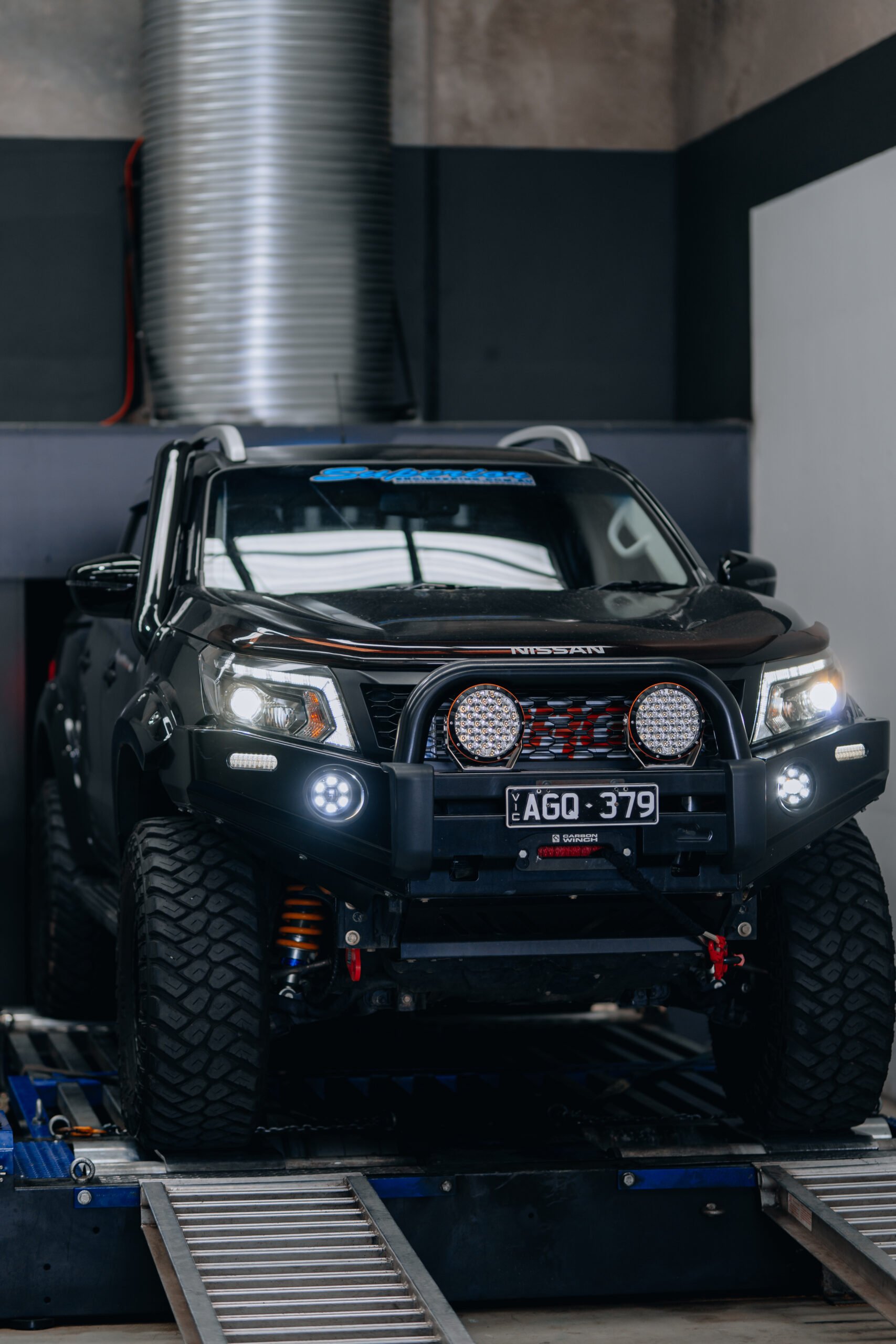

[ On the dyno ]
[ Dyno screen ]
Vehicle details
Spec sheet.
Notes from the tuner
What we did.
Roni's Navara 2.3lt now producing +38% torque +70% power @ 35lbs boost & lambda 1.2. We have remapped ecu with daily commute & towing in mind setting tight parameters for egt & fuel temperatures.
Dyno graph can be found on our website which presents the improvements of intercooling with these models.
#navara #np300 #dieseltuning #melbournetuning #dieseltuningmelbourne #nissan #d23 #tunedbyanton
Anton Krstic · Lead tuner · Bay 02
This Nissan Navara NP300 was tuned on our Mainline AWD dyno. See our Stage 1 | Nissan Navara D23 NP300 if you're after a fixed-price build. All results here come from diesel tuning in Melbourne at our Epping workshop.
Other Nissan Navara NP300 results.
Stage 2 tune
Power & torque · stock vs tuned.
Power
Stock
86kW
→
Tuned
145kW
+59 kW (79 hp) at the hubs+69%
Torque
Stock
338Nm
→
Tuned
467Nm
+129 Nm (95 lb·ft) at the hubs+38%

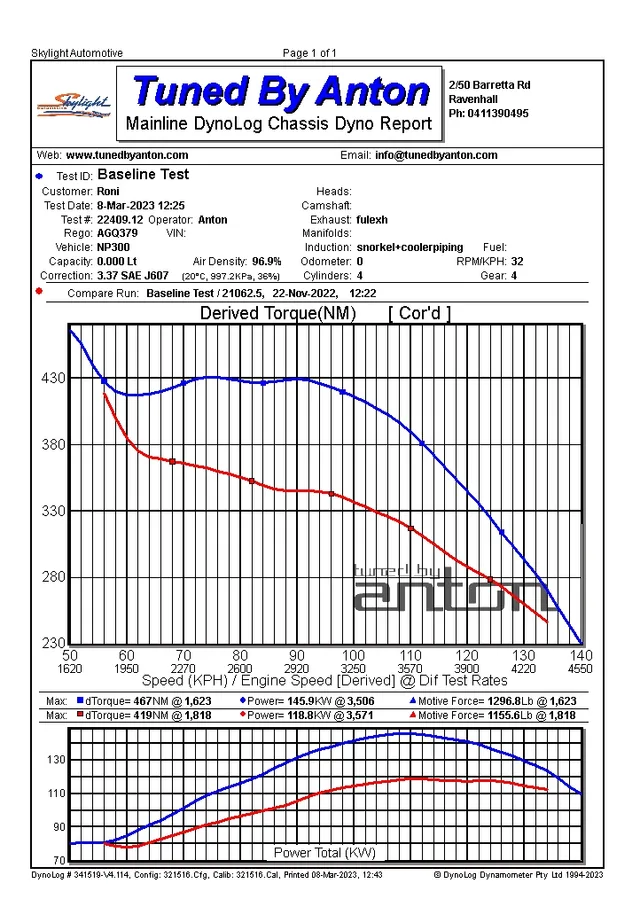

⌁Dyno graph · Pull recorded on the Mainline AWD
Hardware
Modifications.
4 categories · Stage 2 build
- ·Intake
- ·Exhaust
- ·Down Pipe
- ·Intercooler
Calibration
ECU improvements.
Factory
- ·Increased Engine Response
- ·Improved Fuel Efficiency
- ·Improved Power
- ·Improved Torque
