Stage 2Factory
Subaru STI MY16
Tuned · 15 May 24
Bay 02 · Mainline AWD
Bay 02 · Mainline AWD

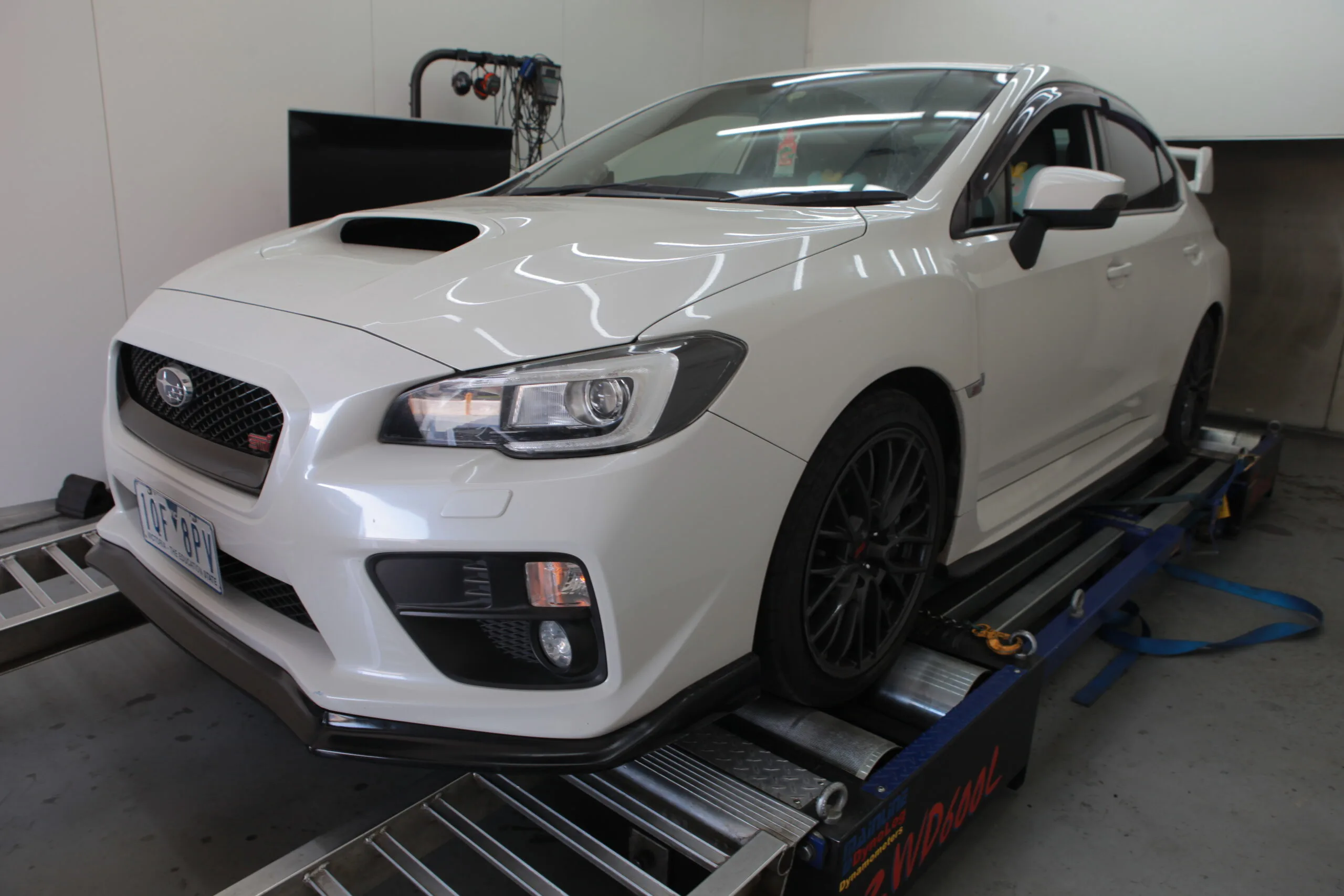

[ On the dyno ]
[ Engine bay ]
EJ25
[ Dyno screen ]
— Vehicle details
Spec sheet.
SeriesVA
Yearbdc54lhqndh4kmlnjawh9cqc
EngineEJ25
Fuel98 RON
ECUFactory
Drivetrain4WD
— Notes from the tuner
What we did.
STi with fundamental performance enhancements is set for tuning by the Fuji Performance team. It's been equipped with ID1050X injectors and a 340LPH fuel pump upgrade, enabling E85 fuel usage. Additional features include a Grimmspeed boost controller, full Invidia exhaust system, and Process West air intake. The SI drive offers multiple boost modes, allowing for up to 25 lbs of boost and an extra 180 Nm of torque.
#grimmspeed #processwest #invidea #sti #wrx #ej25 #melbourne #fujiperformance #tunedbyanton
Anton Krstic · Lead tuner · Bay 02
— Stage 2 tune
Power & torque · stock vs tuned.
— Power
Stock
149kW
→
Tuned
208kW
+59 kW (79 hp) at the hubs+40%
— Torque
Stock
267Nm
→
Tuned
448Nm
+181 Nm (134 lb·ft) at the hubs+68%

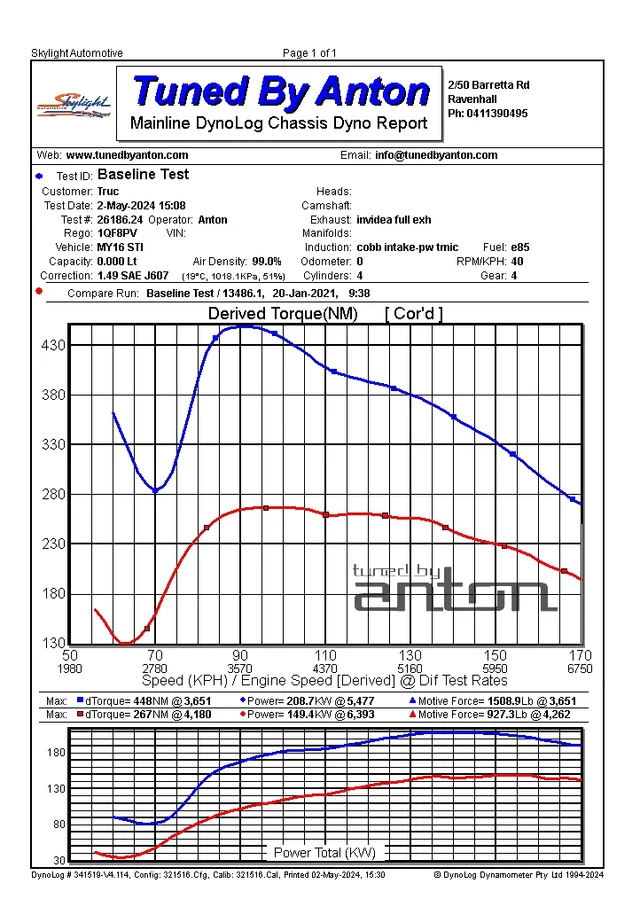

⌁Dyno graph · Pull recorded on the Mainline AWD
— Hardware
Modifications.
4 categories · Stage 2 build
- ·Intake
- ·Exhaust
- ·Down Pipe
- ·Fuel System Upgrade
— Calibration
ECU improvements.
Factory
- ·Improved Fuel Efficiency
- ·Improved Power
- ·Improved Torque
