Stage 2Haltech
Toyota Supra 2JZ VVTI G30-900
Tuned · 09 Jan 24
Bay 02 · Mainline AWD
Bay 02 · Mainline AWD

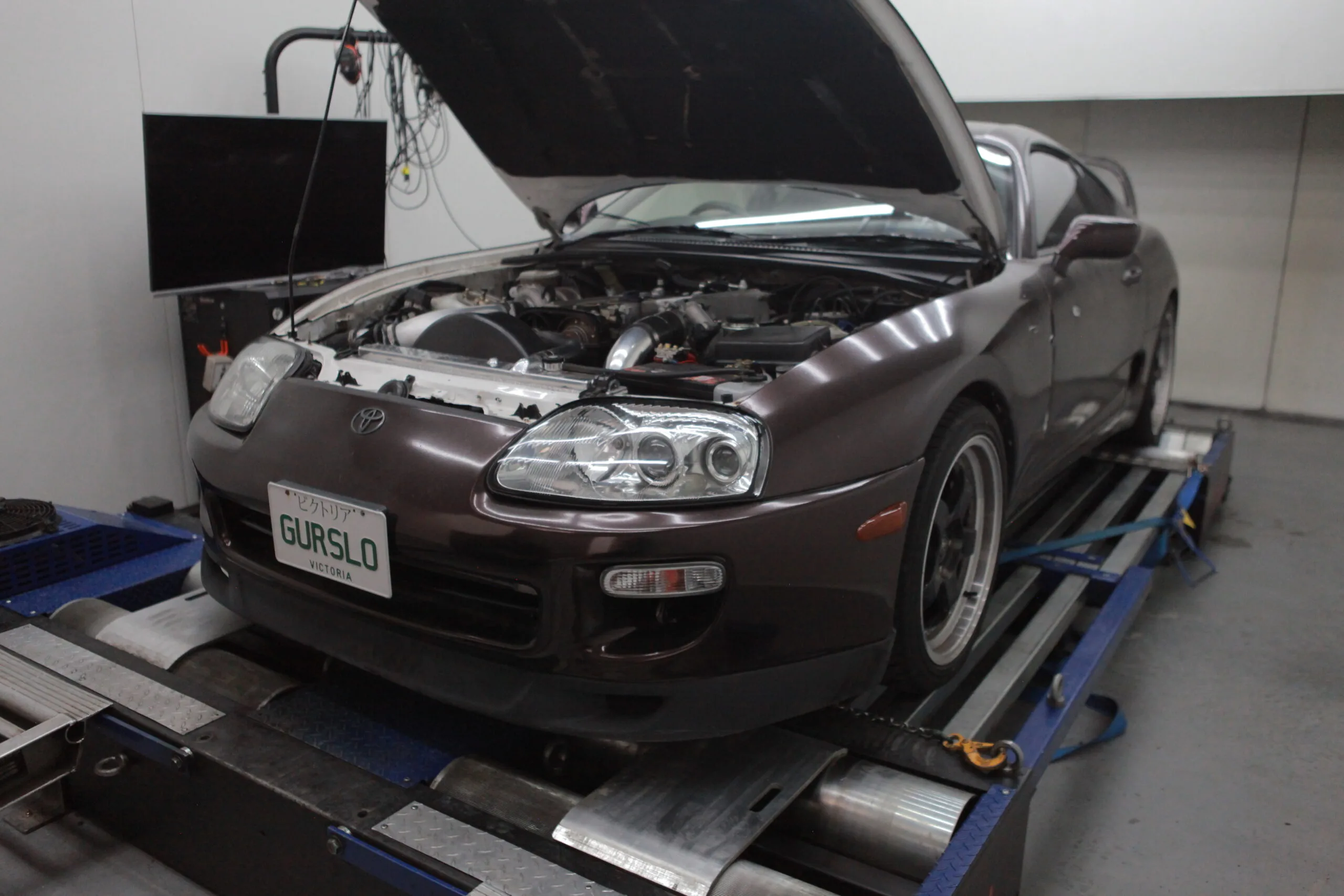

[ On the dyno ]
[ Dyno screen ]
Vehicle details
Spec sheet.
Notes from the tuner
What we did.
The Toyota Supra 2JZ VVTi is equipped with a G30-900 turbocharger and additional supporting modifications, on petrol fuel. The vehicle produces an output of 318kw 19 pounds of boost, creating a punchy street car.
Engine management by Haltech
#2jz #garret #g30 #supra #haltech #tunedbyanton
Anton Krstic · Lead tuner · Bay 02
This Toyota Supra MK4 was tuned on our Mainline AWD dyno. All results here come from dyno tuning in Melbourne at our Epping workshop.
Other Toyota Supra MK4 results.
Stage 2 tune
Power & torque · stock vs tuned.
Power
Stock
200kW
→
Tuned
318kW
+118 kW (158 hp) at the hubs+59%
Torque
Stock
284Nm
→
Tuned
549Nm
+265 Nm (195 lb·ft) at the hubs+93%

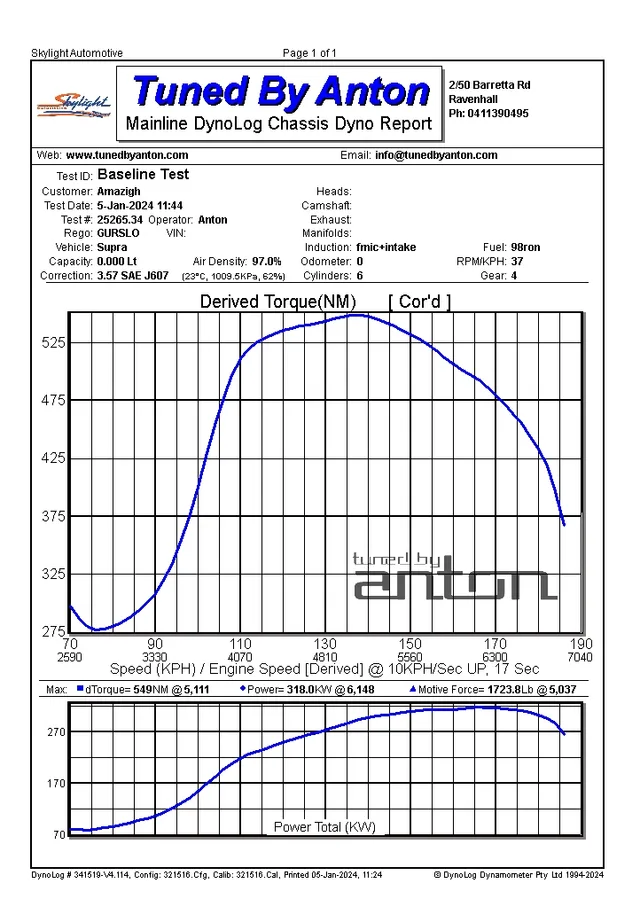

⌁Dyno graph · Pull recorded on the Mainline AWD
Hardware
Modifications.
8 categories · Stage 2 build
- ·Intake
- ·Exhaust
- ·Down Pipe
- ·Intercooler
- ·Fuel System Upgrade
- ·Ignition Upgrade
- ·Turbocharger
- ·Headers
Calibration
ECU improvements.
Haltech
- ·Improved Power
- ·Improved Torque
