Stage 3Haltech
Toyota Supra
Tuned · 06 July 22
Bay 02 · Mainline AWD
Bay 02 · Mainline AWD

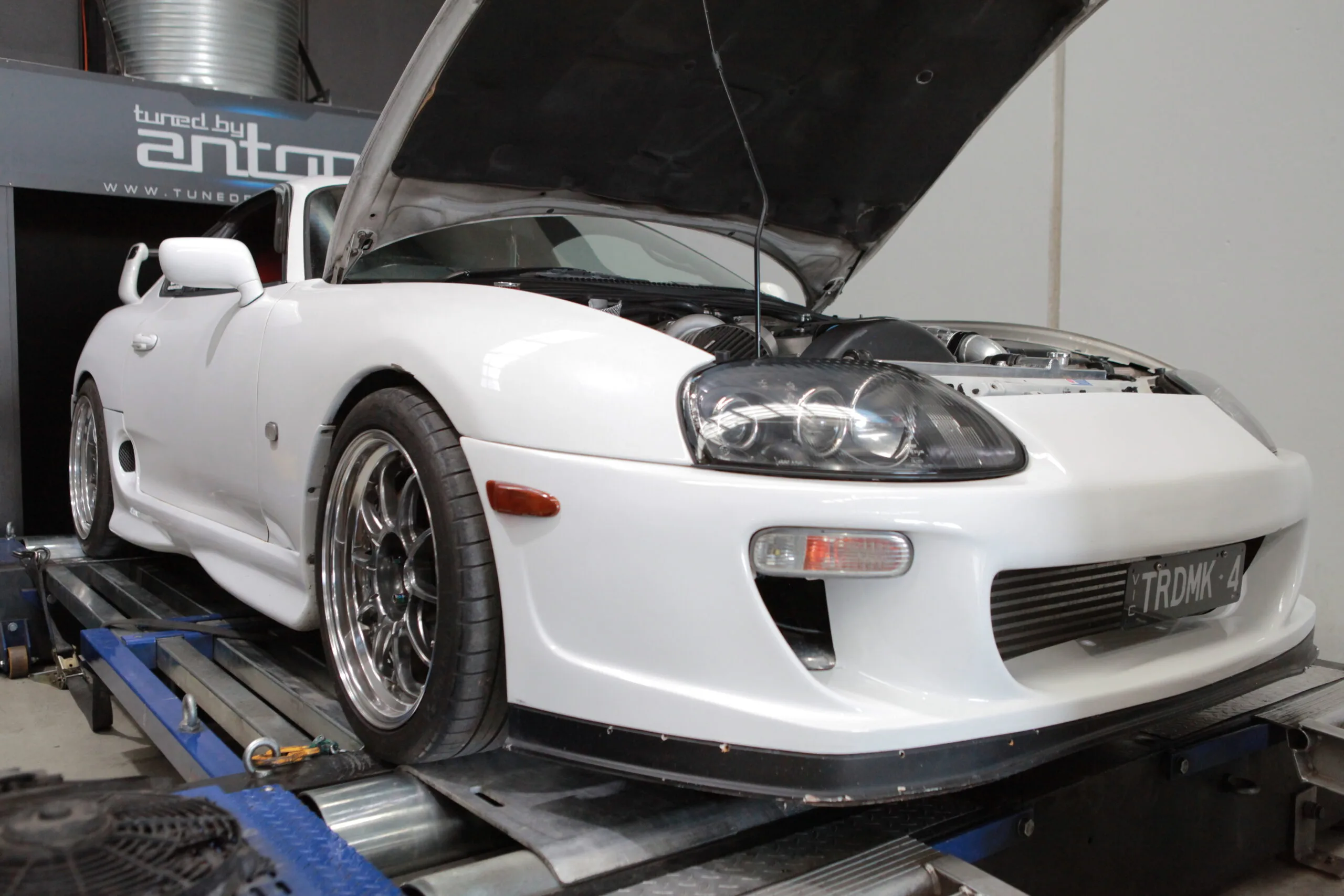

[ On the dyno ]
[ Dyno screen ]
Vehicle details
Spec sheet.
Notes from the tuner
What we did.
This VVTI Supra is completely rewired utilising the Haltech Nexus unit maximising especially on the can & pdm functions. Vehicle is tuned for 12point traction & boost control, 3 differing levels of lope, launch control, rolling antilag, all engine safety measures.
The engine compression is elevated to 10:1, kelford 272/278 & a garret GTX3582R 1.06 turbine + built engine.
To give some perpective this street package is producing;
370kw @ 17psi 6500rpm premium petrol
554kw @ 30psi 7800rpm e85
581kw @ 35psi 8000rpm e85
#2jz #haltech #kelford #tunedbyanton
Anton Krstic · Lead tuner · Bay 02
This Toyota Supra MK4 was tuned on our Mainline AWD dyno. All results here come from dyno tuning in Melbourne at our Epping workshop.
Other Toyota Supra MK4 results.
Stage 3 tune
Power & torque · stock vs tuned.
Power
Stock
200kW
→
Tuned
581kW
+381 kW (511 hp) at the hubs+191%
Torque
Stock
284Nm
→
Tuned
930Nm
+646 Nm (476 lb·ft) at the hubs+227%

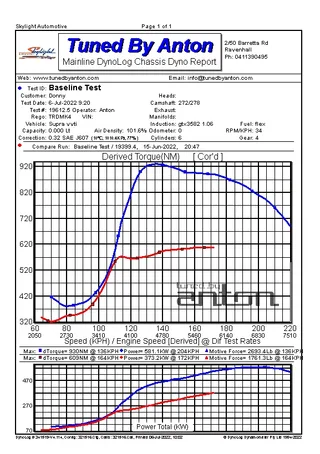

⌁Dyno graph · Pull recorded on the Mainline AWD
Hardware
Modifications.
10 categories · Stage 3 build
- ·Intake
- ·Exhaust
- ·Down Pipe
- ·Intercooler
- ·Fuel System Upgrade
- ·Ignition Upgrade
- ·Engine Components
- ·Transmission Components
- ·Turbocharger
- ·Headers
Calibration
ECU improvements.
Haltech
- ·Improved Power
- ·Improved Torque
- ·Launch Control
- ·Rolling Antilag
