Stage 3Factory
Toyota Supra GR Stage 3
Tuned · 04 Jan 23
Bay 02 · Mainline AWD
Bay 02 · Mainline AWD

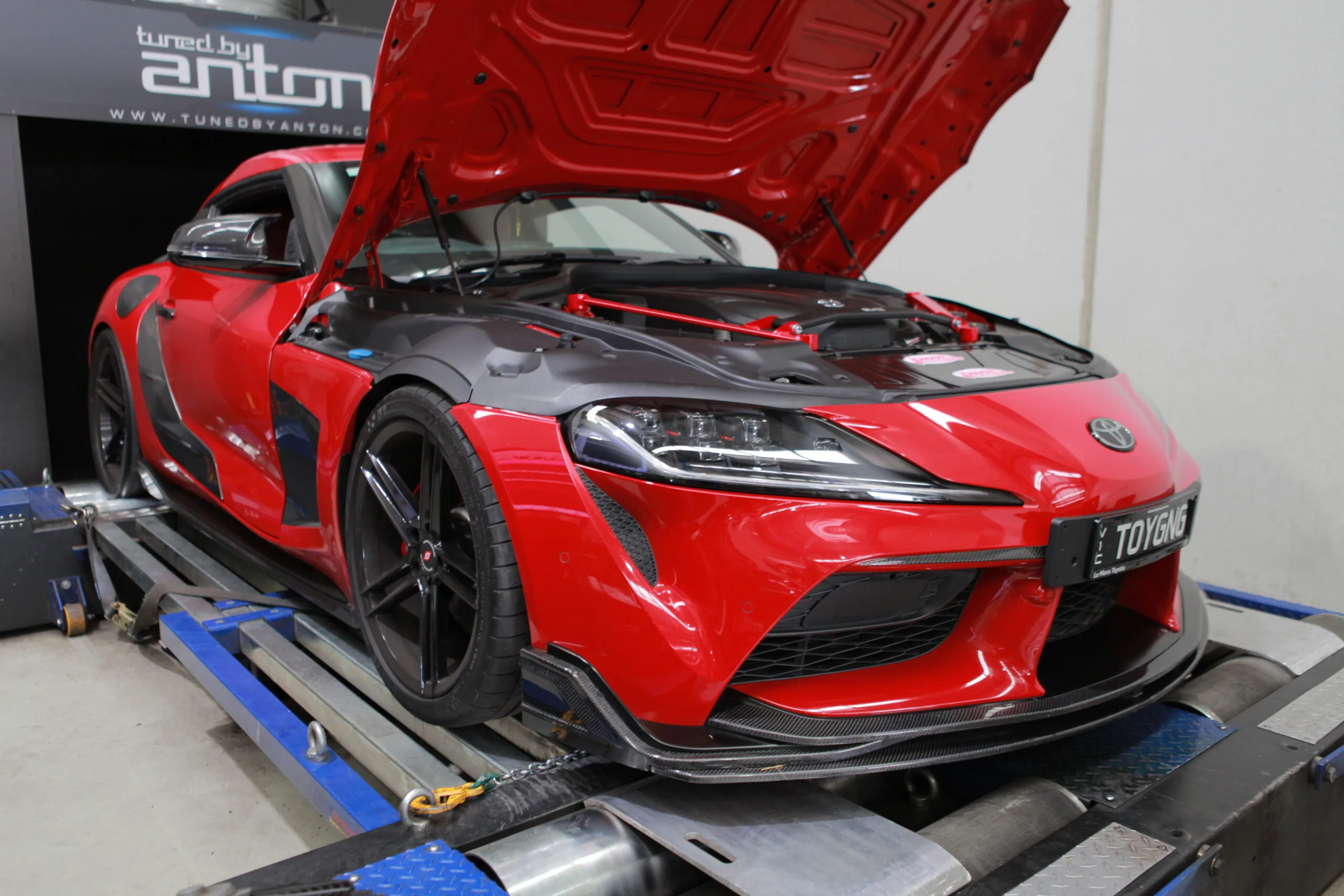

[ On the dyno ]
[ Dyno screen ]
Vehicle details
Spec sheet.
Notes from the tuner
What we did.
GR Supra featuring the pure850 turbocharger, PWR heat exchanger, PWR auxiliary radiators, Invidea exhaust & intake. Vehicle is now producing 354kw @ 20lbs of boost on petrol fuel.
#supra #b58 #trd #melbourne #tunedbyanton
Anton Krstic · Lead tuner · Bay 02
This Toyota Supra MK5 A90 was tuned on our Mainline AWD dyno. All results here come from dyno tuning in Melbourne at our Epping workshop.
Other Toyota Supra MK5 A90 results.
Stage 3 tune
Power & torque · stock vs tuned.
Power
Stock
292kW
→
Tuned
354kW
+62 kW (83 hp) at the hubs+21%
Torque
Stock
420Nm
→
Tuned
544Nm
+124 Nm (91 lb·ft) at the hubs+30%

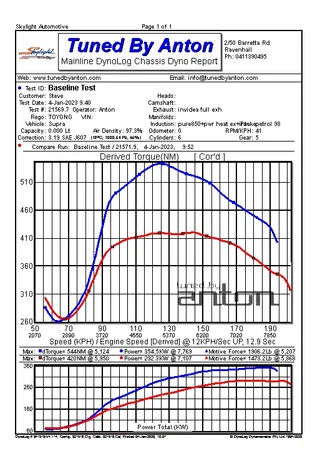

⌁Dyno graph · Pull recorded on the Mainline AWD
Hardware
Modifications.
5 categories · Stage 3 build
- ·Intake
- ·Exhaust
- ·Down Pipe
- ·Intercooler
- ·Turbocharger
Calibration
ECU improvements.
Factory
- ·Improved Power
- ·Improved Torque
- ·Increased Throttle Response
- ·Exhaust Burbles/Pops
- ·Throttle Blip
- ·Increased Clutch Line Pressure
- ·Optimized Shift Schedule
- ·Optimized Shifts
- ·Increased Clutch Torque Limits
- ·Improved Converter Lock Up
- ·Imrpoved Gearshift Torque Reduction
- ·Disabled Auto Start/Stop
- ·Improved Thermal Dynamics
