Stage 2Apexi Power FC
Subaru WRX GC8
Tuned · 15 Aug 24
Bay 02 · Mainline AWD
Bay 02 · Mainline AWD

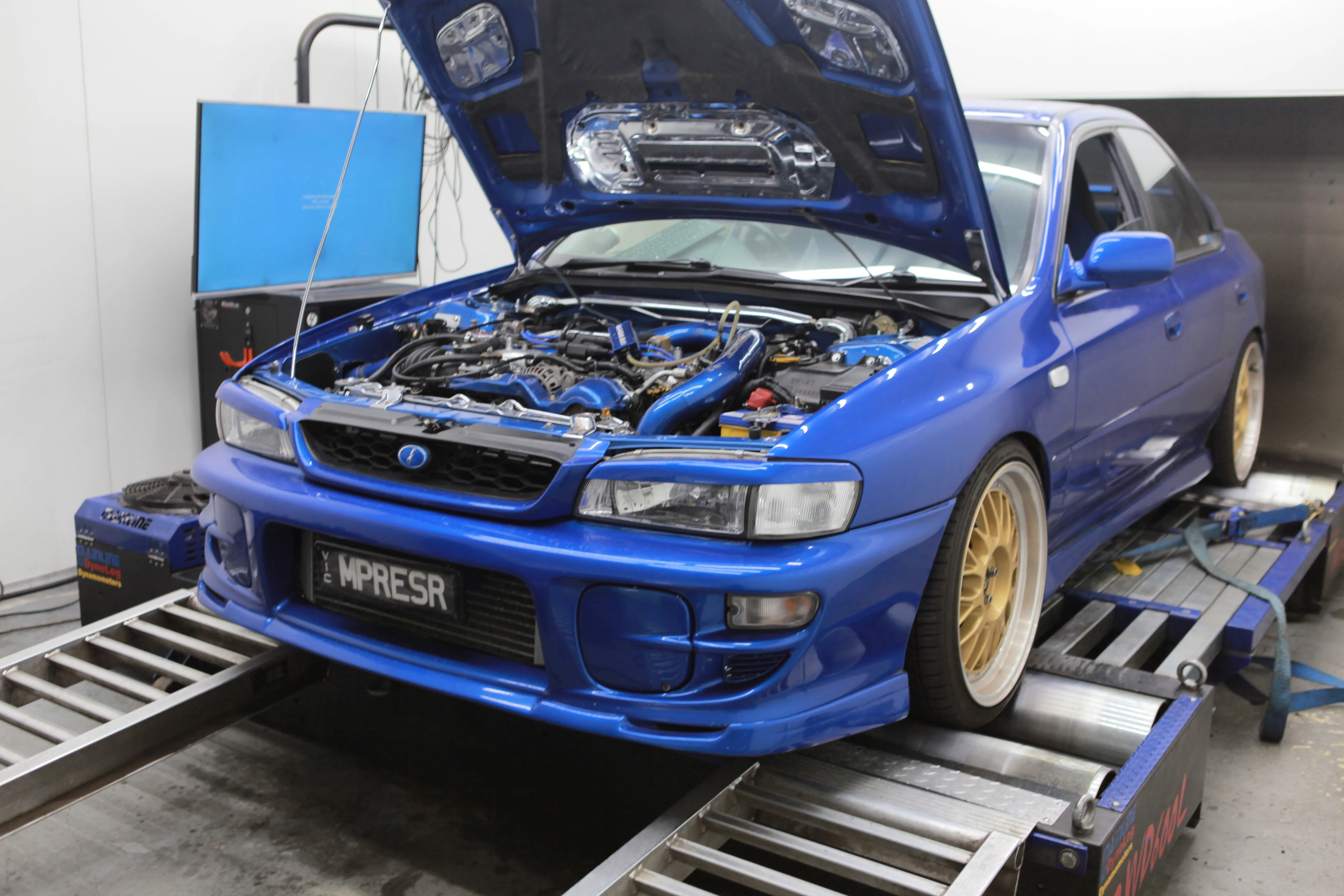

[ On the dyno ]
[ Dyno screen ]
Vehicle details
Spec sheet.
Notes from the tuner
What we did.
This '97 WRX, finished in classic blue, is equipped with high-performance modifications:
VF34 Turbo
Full Exhaust System
Bosch 1150 CC Injectors
Turbosmart Fuel Regulator
Raceworks Topfeed Conversion
Walbro 460 Fuel Pump
Now producing 170 kW at 19 psi of boost.
#ej20 #subaru #tunedbyanton
Anton Krstic · Lead tuner · Bay 02
This Subaru WRX GC8 was tuned on our Mainline AWD dyno. See our Stage 1 | 2014-2021 Subaru WRX if you're after a fixed-price build. All results here come from dyno tuning in Melbourne at our Epping workshop.
Other Subaru WRX GC8 results.
Stage 2 tune
Power & torque · stock vs tuned.
Power
Stock
130kW
→
Tuned
170kW
+40 kW (54 hp) at the hubs+31%
Torque
Stock
214Nm
→
Tuned
277Nm
+63 Nm (46 lb·ft) at the hubs+29%

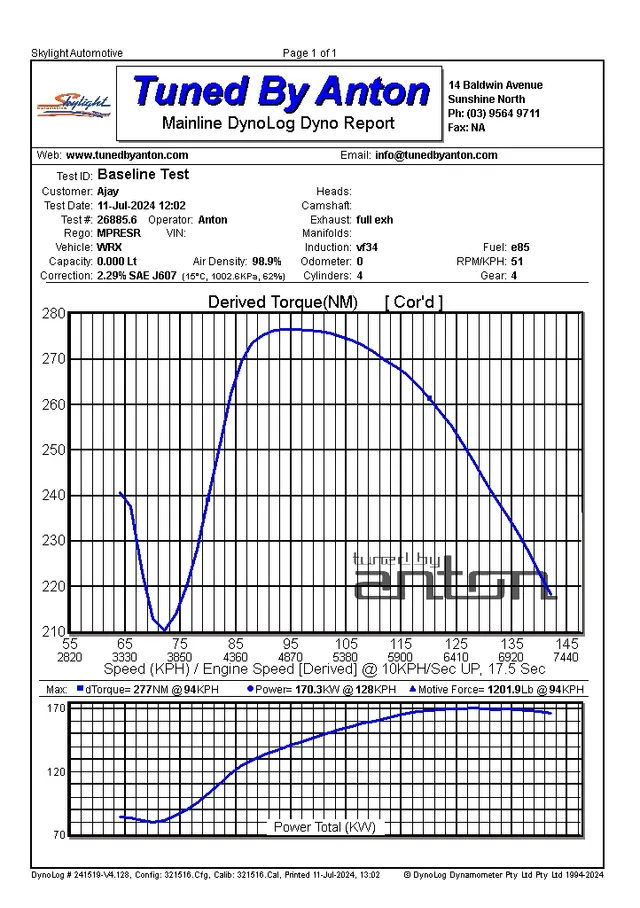

⌁Dyno graph · Pull recorded on the Mainline AWD
Hardware
Modifications.
7 categories · Stage 2 build
- ·Intake
- ·Exhaust
- ·Down Pipe
- ·Intercooler
- ·Fuel System Upgrade
- ·Turbocharger
- ·Headers
Calibration
ECU improvements.
Apexi Power FC
- ·Improved Power
- ·Improved Torque
