Stage 1Factory
Subaru WRX MY02
Tuned · 15 May 24
Bay 02 · Mainline AWD
Bay 02 · Mainline AWD

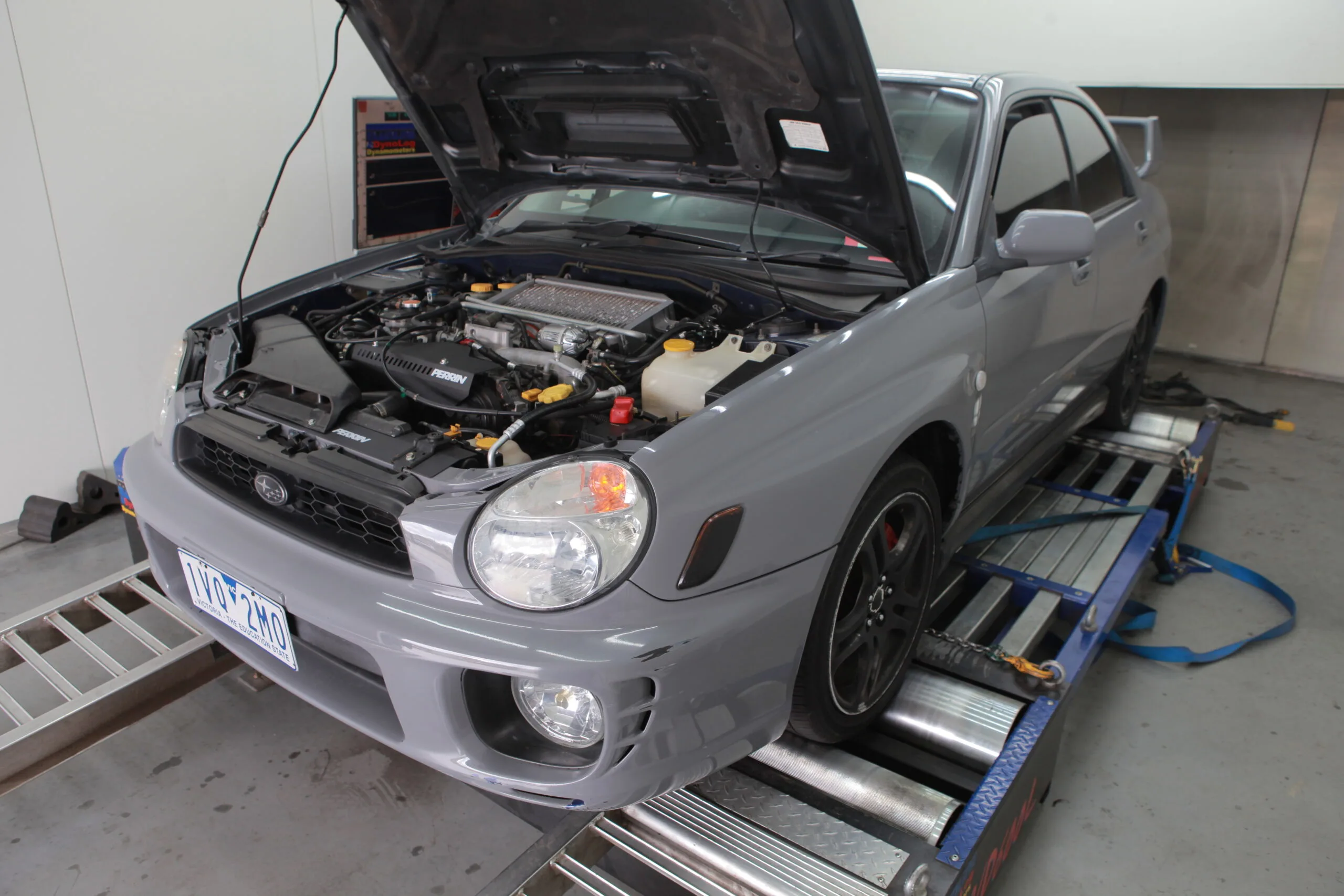

[ On the dyno ]
[ Dyno screen ]
Notes from the tuner
What we did.
The EJ20 WRX has been fitted with an Invidia downpipe and a Process West air intake system
#ej20 #wrx #tunedbyanton
Anton Krstic · Lead tuner · Bay 02
This Subaru WRX GD was tuned on our Mainline AWD dyno. See our Stage 1 | 2014-2021 Subaru WRX if you're after a fixed-price build. All results here come from dyno tuning in Melbourne at our Epping workshop.
Other Subaru WRX GD results.
Stage 1 tune
Power & torque · stock vs tuned.
Power
Stock
125kW
→
Tuned
140kW
+15 kW (20 hp) at the hubs+12%
Torque
Stock
216Nm
→
Tuned
262Nm
+46 Nm (34 lb·ft) at the hubs+21%

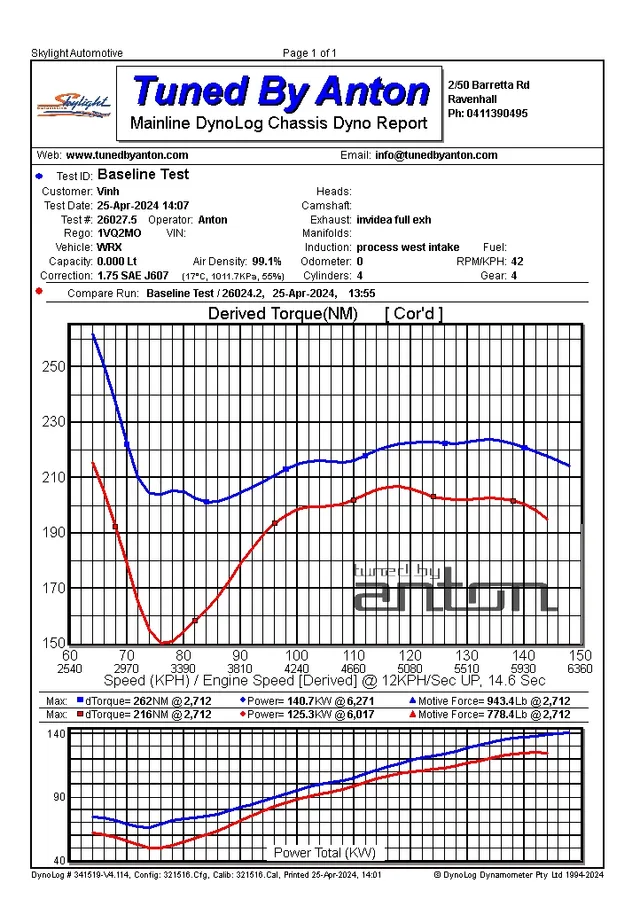

⌁Dyno graph · Pull recorded on the Mainline AWD
Hardware
Modifications.
3 categories · Stage 1 build
- ·Intake
- ·Exhaust
- ·Down Pipe
Calibration
ECU improvements.
Factory
- ·Improved Fuel Efficiency
- ·Improved Power
- ·Improved Torque
